MOTORS & GEARBOXES
Comprehensive range engineered for reliability, efficiency, and long service life

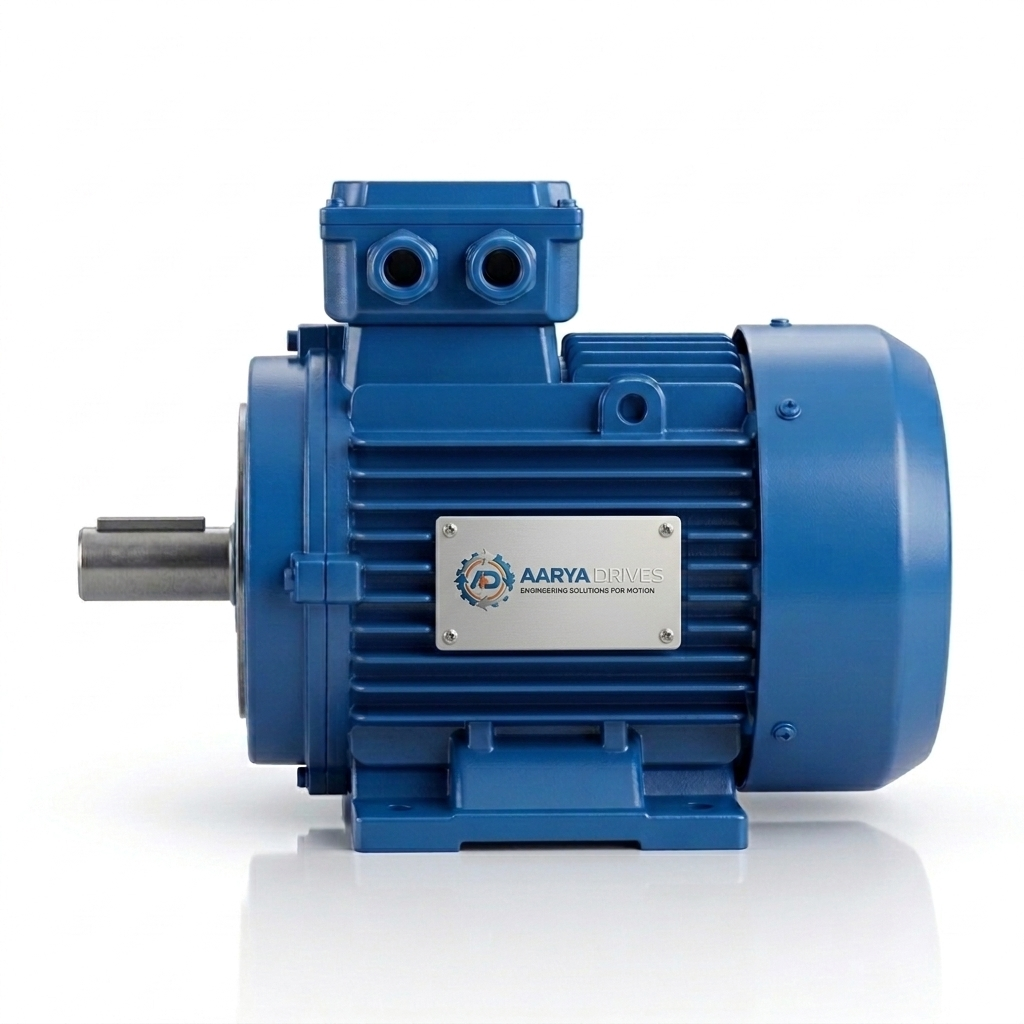

Foot Mounted Motors
High-performance motors with B3 mounting for versatile industrial applications. Designed for demanding environments with superior efficiency.
- PHASE: 3
- POWER SUPPLY: 415V,50Hz
- H.P.: 0.25 to 40.0
- I. Class: B & F
- RPM: 2800, 1500, 960, 720
- Duty: S1 - S4
- Mounting: Foot (B3)
- Enclosure: TEFC, TESC
- Frame: 63 to 180 L
- Protection: IP 55, IP 44

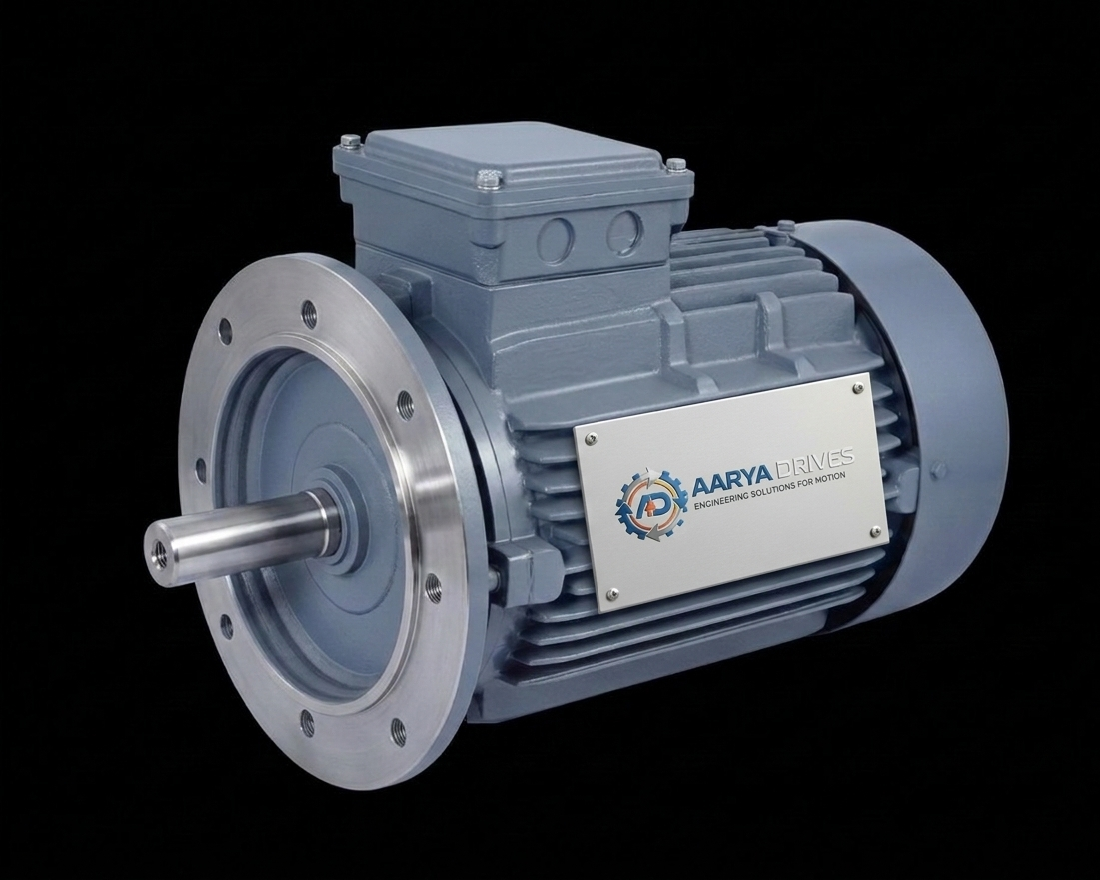

Flange Mounted Motors
Precision flange-mounted motors for compact installations and direct coupling applications. Perfect for space-constrained environments.
- PHASE: 3
- POWER SUPPLY: 415V,50Hz
- H.P.: 0.25 to 40.0
- I. Class: B & F
- RPM: 2800, 1500, 960, 720
- Duty: S1 - S4
- Mounting: Flange (B5)
- Enclosure: TEFC, TESC
- Frame: 63 to 180 L
- Protection: IP 55, IP 44

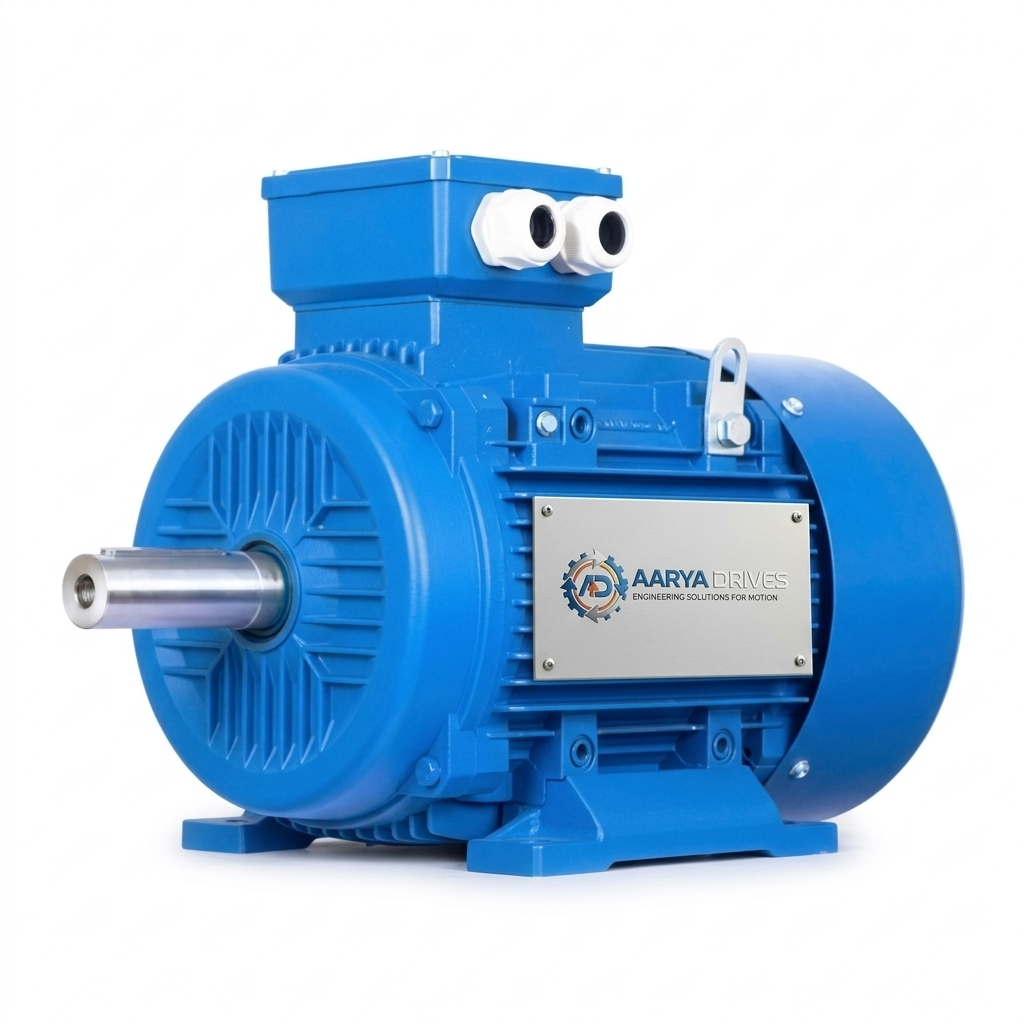

Single Phase Motors
Reliable single-phase motors for residential and light industrial use. Ideal for applications with single-phase power supply.
- Voltage: 230V, 50Hz
- I. Class: B & F
- H.P.: 0.25 to 5
- RPM: 2800, 1500, 960, 720
- Duty: S1
- Mounting: Flange & Foot
- Enclosure: TEFC, TESC
- Frame: 63 to 132 M
- Protection: IP 55, IP 44

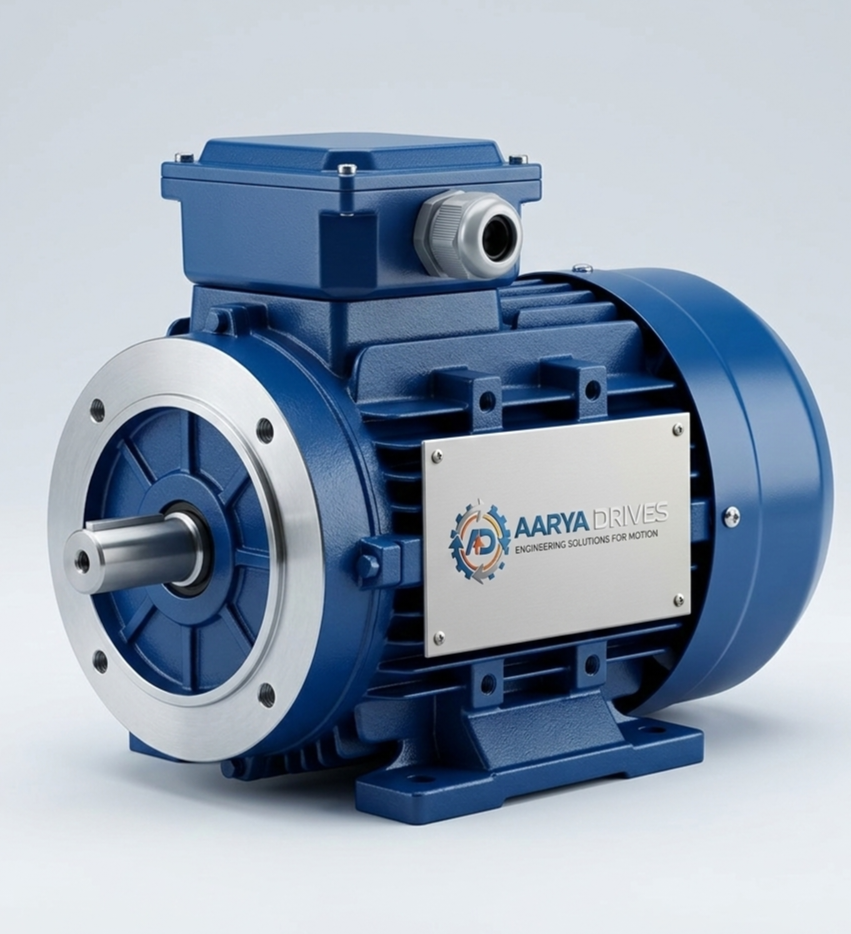

Face Mounted Motors
Compact face-mounted design ideal for space-constrained applications requiring direct mounting to machinery.
- PHASE: 3
- POWER SUPPLY: 415V,50Hz
- H.P.: 0.25 to 40.0
- I. Class: B & F
- RPM: 2800, 1500, 960, 720
- Duty: S1 - S4
- Mounting: Face (B14)
- Enclosure: TEFC, TESC
- Frame: 63 to 132 M
- Protection: IP 55, IP 44

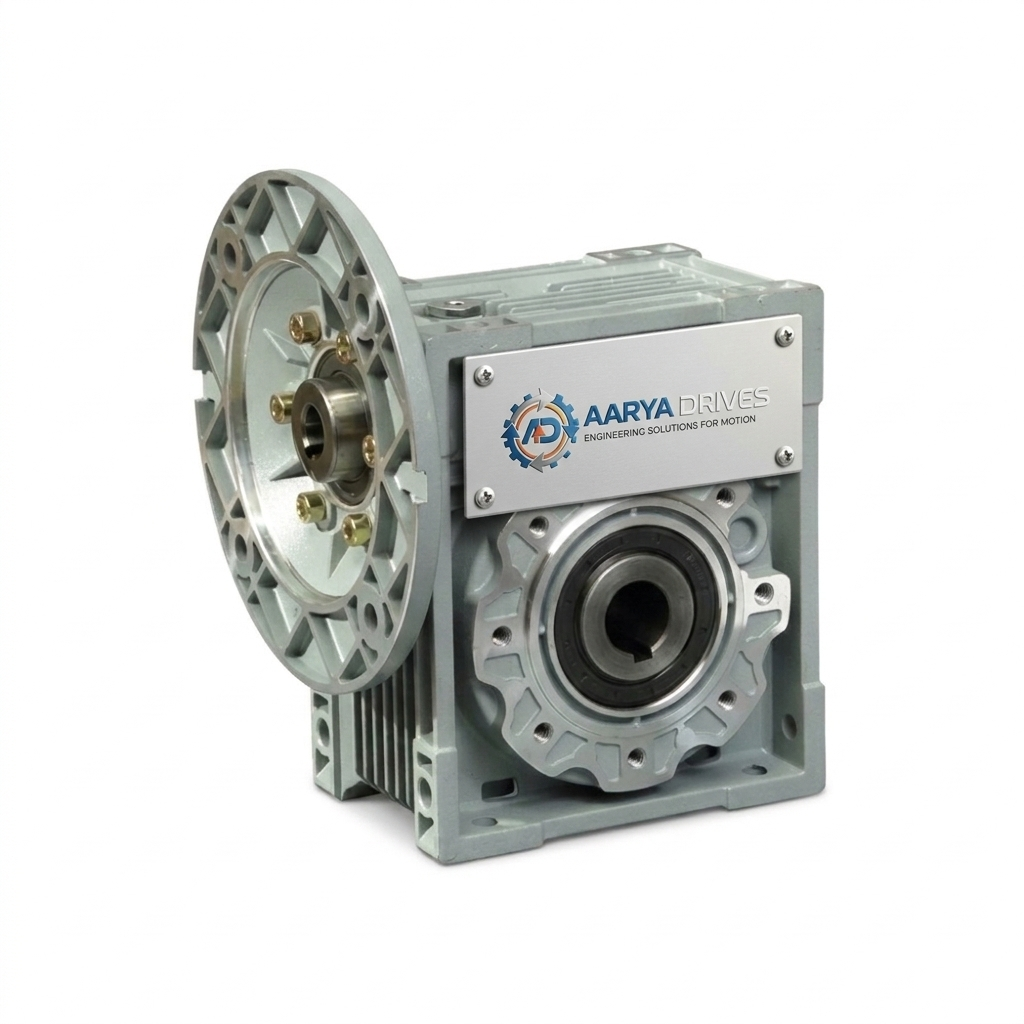

NMRV SERIES WORM GEARBOX
The NMRV Series Worm Gearbox is a compact gearbox used to reduce speed and increase torque in industrial machines
- MODEL: 30/40/50/63/75/90/110/130/150
- RATIO: 7.5 / 10 / 15 / 20 / 25 / 30 / 40 / 50 / 60 / 80 / 100
- INPUT POWER: 0.18 kW to 7.5 kW (Depending on Model Size)
- MOUNTING OPTIONS:Foot Mounted,Flange Mounted,Face Mounted,Shaft Mounted (Torque Arm Option Available)
- OUTPUT TORQUE: Up to 1500 Nm (Depending on Ratio & Model)
- OUTPUT SHAFT: Hollow Shaft (Standard), Solid Shaft (Optional),Single / Double Output Shaft (Optional)

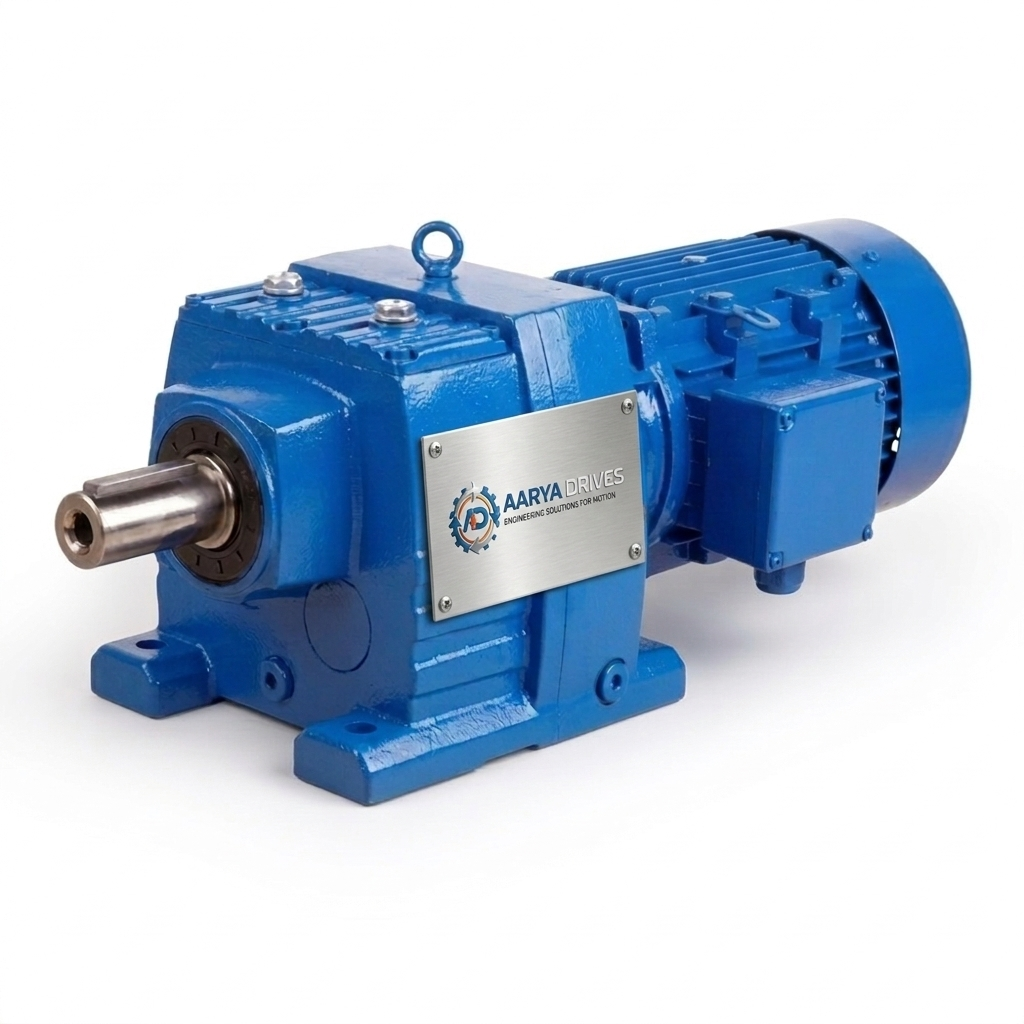

Helical Gearboxes
Efficient helical gearboxes for smooth, quiet operation with high torque capacity.
- MODEL: SP 102 / 128 / 142 / 162
- RATIO: AVAILABLE FROM 5:1 TO 120:1
- INPUT POWER: 0.18 kW TO 7.5 kW (0.25 HP TO 10 HP)
- MOUNTING OPTIONS: FOOT MOUNTED, FLANGE MOUNTED AND UNIVERSAL MOUNTING
- OUTPUT TORQUE: UP TO 450 Nm (Depending on Model & Ratio)
- OUTPUT SHAFT: Solid Shaft with Keyway Optional Hollow Shaft Available
